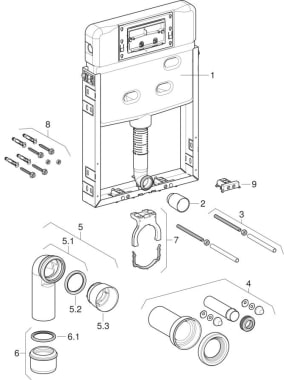

Installation elements
Installation elements
| # | Art. no. | Description |
|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 8 cm, IN | |
| 2 | 362.796.92.1 | Protection Plug for Ring Seal Socket dia 48mm - Samba |
| 3 | 240.189.00.1 | Threaded nut & cover |
14 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 12 cm | |||
| 2 | 216.179.00.1 | Fixing material complet | ||
| 3 | 240.189.00.1 | Threaded nut & cover | ||
18 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 8 cm | |||
| 2 | 243.346.00.1 | fastening bracket 8/12cm Set-2 | ||
| 3 | 242.419.00.1 | mounting accessories for KF C/C Sigma-8 | ||
17 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Omega concealed cisterns 12 cm | |||
| 2 | 156.050.00.1 | Sound insulation set for wall-hung WC and bidet | ||
| 3 | 240.189.00.1 | Threaded nut & cover | ||
20 Articles
Alpha concealed cisterns 10 cm
2012 - 2022
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1.1 | 242.627.00.1 | Stop valve comlete | |
| 1.1.1 | 242.628.00.1 | O-Ring 20x2 | |
| 1.2 | 245.426.00.1 | FV Typ333 für CC-Alpha-10.5 IN | 242.629.00.1, 242.630.00.1, 243.394.00.1 |
18 Articles
Alpha concealed cisterns 11 cm
2012 - 2023
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | Go to the spare parts page: Fill valves Type 383, lateral water supply connection unit | ||
| 1 | Go to the spare parts page: Fill valves type 380, lateral water supply connection | ||
| 1 | 240.705.00.5 | FV Typ 383 sc 3/8'' br f C/C spare | 240.705.00.1 |
22 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Sigma concealed cisterns 8 cm (from year of manufacture 2016) | |||
| 1 | Go to the spare parts page: Sigma concealed cisterns 8 cm, front actuation (UP720) | |||
| 2 | 242.419.00.1 | mounting accessories for KF C/C Sigma-8 | ||
22 Articles
Delta concealed cisterns 8 cm (UP172)
2009 - 2016
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.475.00.1 | Angle stop valve for UP100 | ||
| 2 | 240.921.00.1 | Connection hose for new cistern | ||
| 2 | 241.854.00.1 | Hose 333 nut 3/8'' for Sig12 dezinc. | ||
35 Articles
