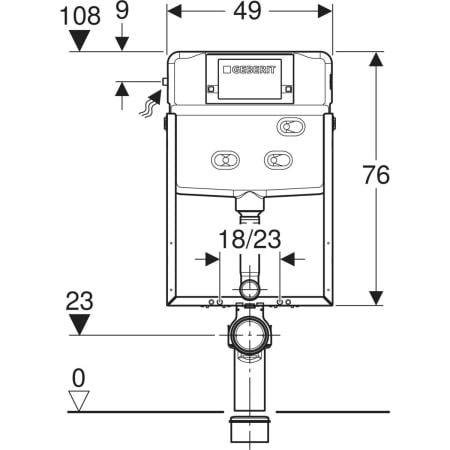

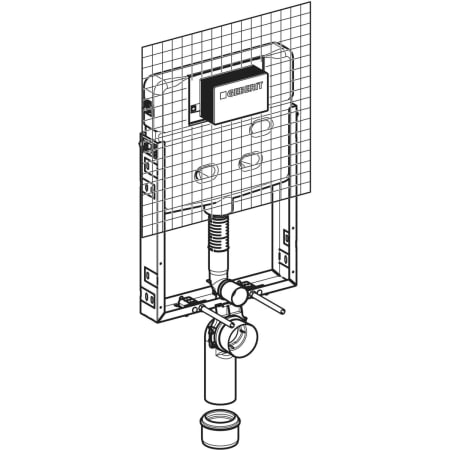

Geberit Kombifix element for wall-hung WC, 108 cm, with Alpha concealed cistern 8 cm, IN
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Zinc-plated mounting frameMounting frame with fastening brackets facilitates three installation situationsFastening brackets can be bent without tools for two prewall depthsPremounted direct plastering nettingConnection bend can be mounted without toolsFastening for connection bend can be mounted without tools from frontConcealed cistern with front actuation
Flush volume can be set to 6 levelsEasily replaceable narrow flush valveImmediate post flush possible with factory settingWater supply connection on the leftWater supply connection made of brassProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length
Scope of delivery
Water supply connection R 1/2", with integrated angle stop valve
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material
Documents
Your input does not return any results
Spare parts
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 8 cm, IN
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 8 cm, IN
2022 -
| # | Art. no. | Description |
|---|---|---|
| 1 | Go to the spare parts page: | |
| 2 | 362.796.92.1 | Protection Plug for Ring Seal Socket dia 48mm - Samba |
| 3 | 240.189.00.1 | Threaded nut & cover |
13 Articles
