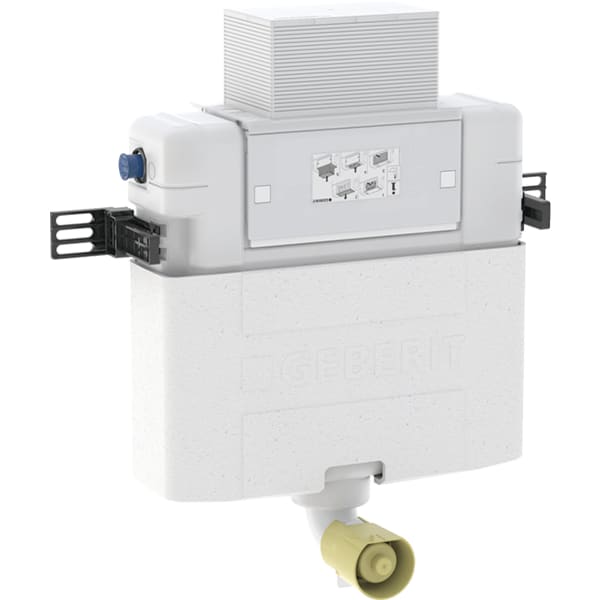

Geberit Alpha concealed cistern 12 cm, 6 / 3 litres, installation height 82 cm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	6 / 3 l	Flush volume, factory setting 6 / 3 l
Full flush volume, adjustment range	4 / 4.5 / 6 / 7.5 l	Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Product material	Plastic	Product material Plastic

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	6 / 3 l	Flush volume, factory setting 6 / 3 l
Full flush volume, adjustment range	4 / 4.5 / 6 / 7.5 l	Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Product material	Plastic	Product material Plastic

Click on an application purpose to search more products

Click on a characteristic to search more products

Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend extension, ø 45 mm
Protection plug

DoP14 Cistern

EN and 30 others

Alpha concealed cistern 12 cm, H82

Alpha 12 cm concealed cistern

Concealed Cisterns

Geberit Alpha concealed cistern 8 cm, IN

109.011.00.1

Replaces art. no. 109.010.00.1

Alpha concealed cisterns 12 cm

2021 -

#	Art. no.	Description
1	242.414.00.1	angle stop valve 1/2'' for UP720
1.1	240.298.00.1	Spindle for angle stop valve UP 200
1.2	240.347.00.1	hand wheel for angle stop valve

33 Articles
