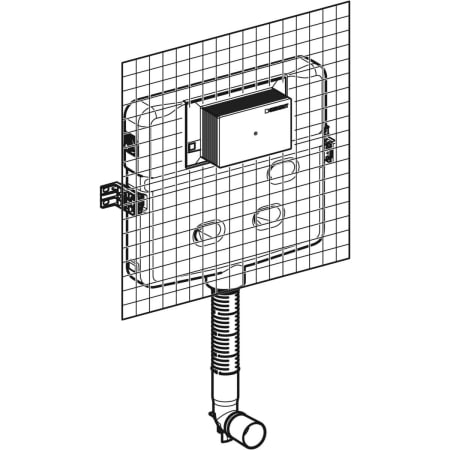

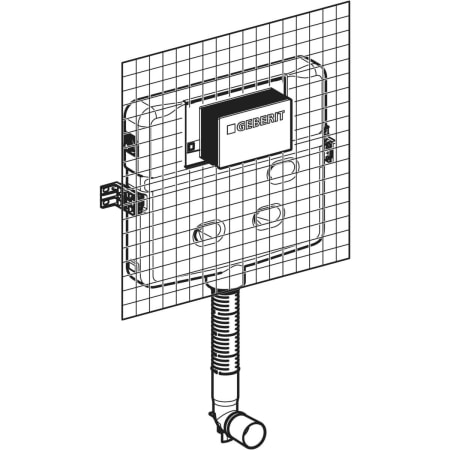

Geberit Alpha concealed cistern 8 cm, IN
My list (0)
Technical data
Flow pressure (bar) - min. to max. 0.1–10 bar |
Operating temperature, water (°C) - max. 25 °C |
Flush volume, factory setting (l) 6 / 3 l |
Flush volume large, adjustment range (l) 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range (l) 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection R 1/2", with integrated angle stop valve
Protection box for service opening
Flush bend extension, ø 45 mm
Protection plug
2 fixing brackets
Fastening material
Documents
Your input does not return any results

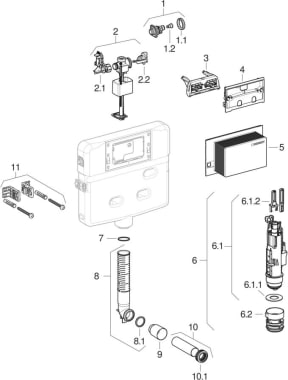

Spare parts
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 245.418.00.1 | angle stop valve to UP-Alpha-8.5 IN | |
| 1.1 | 241.857.00.1 | counter nut plastic | |
| 2 | 245.425.00.1 | FV Typ333 für CC-Alpha-8.5 IN | |
