Fill valves for concealed cisterns

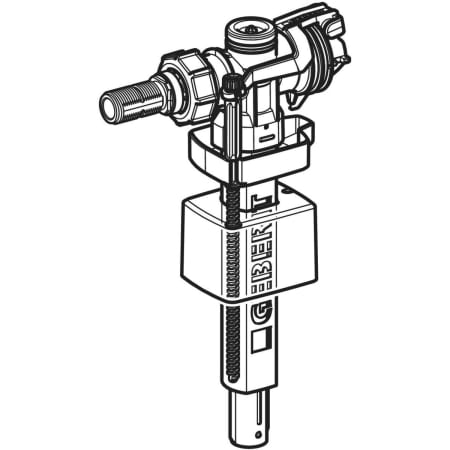

Geberit Type 383 fill valve, lateral water supply connection, 3/8", nipple made of brass

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	241.469.00.5

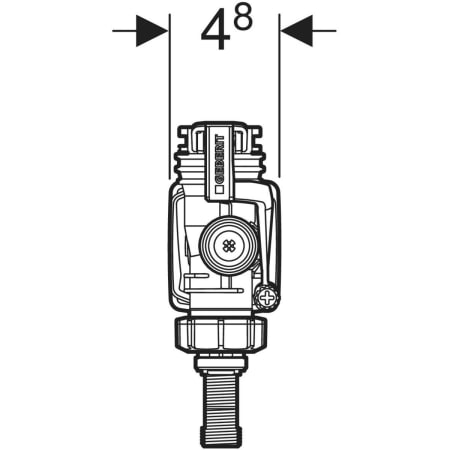

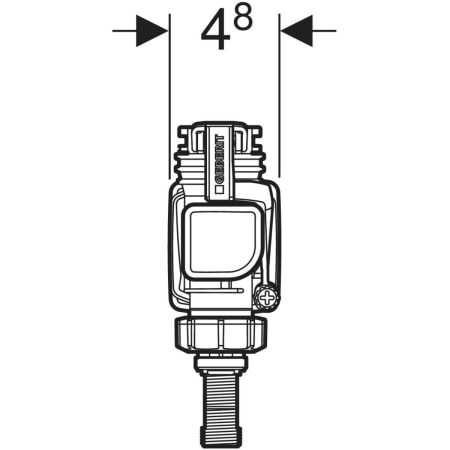

B	4.8 cm

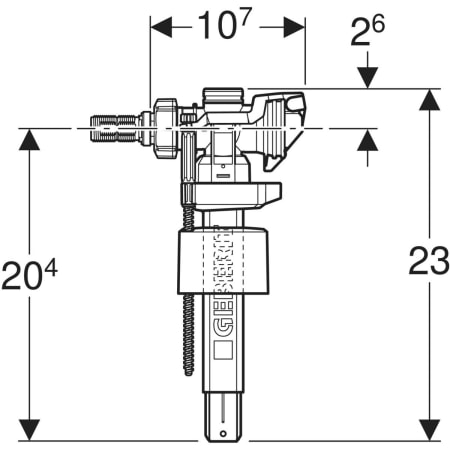

H	20.4 cm

Technical data

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Appliance sound pressure level at 300 kPa / 3 bar	7 dB(A)	Appliance sound pressure level at 300 kPa / 3 bar 7 dB(A)
Appliance sound pressure level at 500 kPa / 5 bar	13 dB(A)	Appliance sound pressure level at 500 kPa / 5 bar 13 dB(A)
Storage temperature	≤ 40 °C	Storage temperature ≤ 40 °C
Water temperature max.	25 °C	Water temperature max. 25 °C

Flow rate at 50 kPa / 0.5 bar	0.06 l/s	Flow rate at 50 kPa / 0.5 bar 0.06 l/s
Flow rate at 300 kPa / 3 bar	0.16 l/s	Flow rate at 300 kPa / 3 bar 0.16 l/s
Minimum flow pressure	0.1 bar	Minimum flow pressure 0.1 bar
Calculated flow rate	0.09 l/s	Calculated flow rate 0.09 l/s

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Appliance sound pressure level at 300 kPa / 3 bar	7 dB(A)	Appliance sound pressure level at 300 kPa / 3 bar 7 dB(A)
Appliance sound pressure level at 500 kPa / 5 bar	13 dB(A)	Appliance sound pressure level at 500 kPa / 5 bar 13 dB(A)
Storage temperature	≤ 40 °C	Storage temperature ≤ 40 °C
Water temperature max.	25 °C	Water temperature max. 25 °C
Flow rate at 50 kPa / 0.5 bar	0.06 l/s	Flow rate at 50 kPa / 0.5 bar 0.06 l/s
Flow rate at 300 kPa / 3 bar	0.16 l/s	Flow rate at 300 kPa / 3 bar 0.16 l/s
Minimum flow pressure	0.1 bar	Minimum flow pressure 0.1 bar
Calculated flow rate	0.09 l/s	Calculated flow rate 0.09 l/s

Application purposes

Click on an application purpose to search more products

For installation in exposed cisterns with lateral water supply connection For greywater and rainwater with pH value 5.5–9.5, if a filter system is used For ceramic cisterns For potable water

For water supply connections 3/8''

Characteristics

Click on a characteristic to search more products

Adjustable filling height Threaded nipple made of brass Water supply connection on the left/right Low-noise in accordance with tap group I (DIN 4109)

Components in contact with drinking water lead-free

Scope of delivery

Filter for nipple / reinforced braided hose types 350 and 380 filling valves
Cone screw fitting
