Geberit Type 380 fill valve, lateral water supply connection, 3/8", nipple made of brass
Sections:
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Appliance sound pressure level at 300 kPa / 3 bar 12 dB(A) |
Appliance sound pressure level at 500 kPa / 5 bar 18 dB(A) |
Storage temperature ≤ 40 °C |
Water temperature max. 25 °C |
Durchfluss bei 300 kPa / 3 bar 0.19 l/s |
Minimum flow pressure 0.5 bar |
Calculated flow rate 0.11 l/s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Adapter for nipple, for Type 350 fill valve
Cone screw fitting
Connection pipe made of copper
Documents
Spare parts

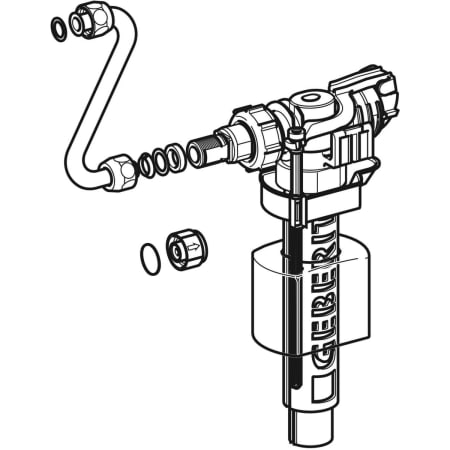

Fill valves type 380, lateral water supply connection
Fill valves type 380, lateral water supply connection
1999 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.710.00.1 | Connection pipe for Impuls380 filling valve | ||
| 2 | 240.771.00.1 | Sealing Set for valve, Unifil-Samba | ||
| 4 | 240.069.00.1 | Flexible tube for water connection | ||
