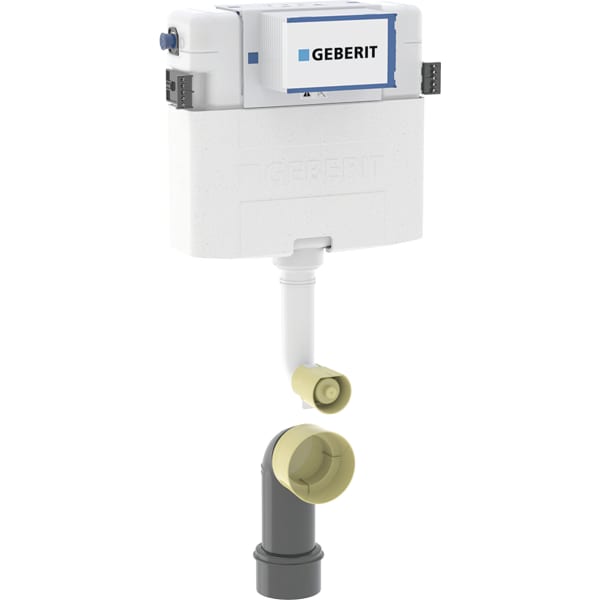

Geberit Omega concealed cistern 12 cm, 6 / 3 litres, installation height 106 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 3 bar 9.6 l/min |
Flow rate at 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend,ø 90 / 110 mm
2 protection plugs
2 fixing brackets
Fastening material
Documents
Your input does not return any results
Films
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Isolation Valve UP200 Complete | 240.177.00.1 | |
| 1.1 | 240.298.00.1 | Spindle for angle stop valve UP 200 | ||
| 1.2 | 241.857.00.1 | counter nut plastic | ||
