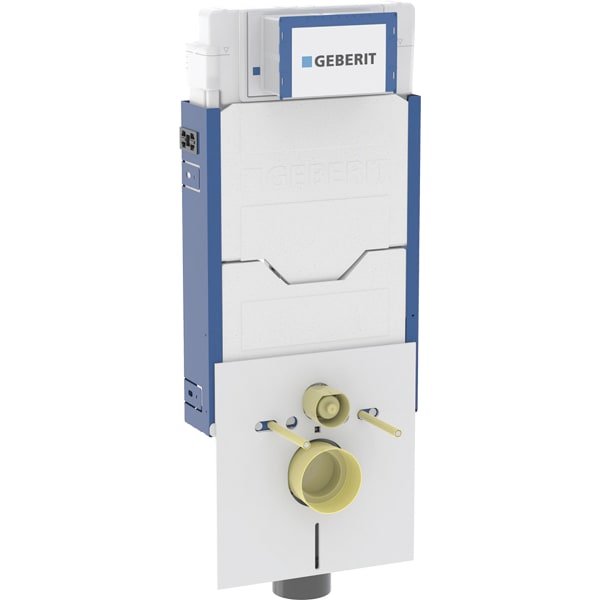

Geberit Kombifix element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Durchfluss bei 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Powder-coated mounting frameMounting frame with four fixing bracketsConnection bend can be mounted without toolsFastening for connection bend can be mounted without tools from frontConcealed cistern with front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to lengthWith conduit pipe for feed pipe for connection of Geberit AquaClean shower toiletsFastening option for electrical connection

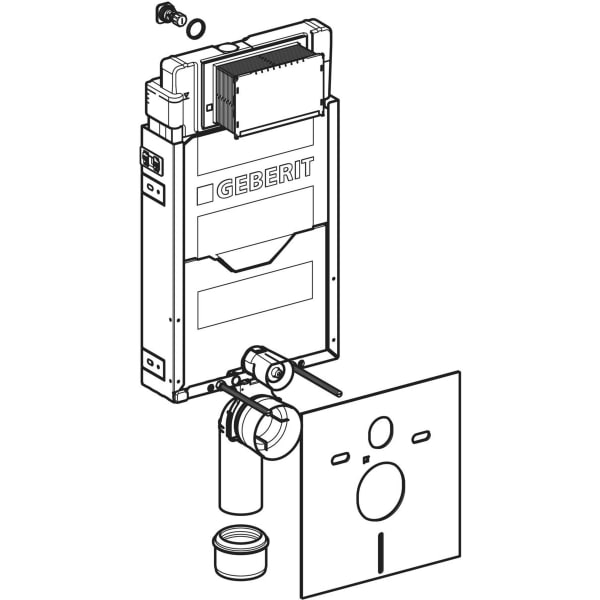

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Filling segment
2 protection plugs
Sound insulation set
2 threaded rods M12
Fastening material
Documents
Your input does not return any results
Films
Spare parts
Geberit Kombifix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
Geberit Kombifix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
2008 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: | |||
| 3 | 156.050.00.1 | Sound insulation set for wall-hung WC and bidet | ||
| 4 | 240.189.00.1 | Threaded nut & cover | ||
