Geberit urinal flush control with electronic flush actuation, battery operation, actuator plate made of plastic

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 115.818.11.1

Art. no.	115.818.11.5
Colour / surface	white alpine
Product material	Plastic

Replaces art. no. 115.818.46.1

Art. no.	115.818.46.5
Colour / surface	chrome / matt
Product material	Plastic

Technical data

Battery type	Alkaline (1.5 V AA)	Battery type Alkaline (1.5 V AA)
Degree of protection	IP45	Degree of protection IP45
Operating voltage	3 V DC	Operating voltage 3 V DC
Flow pressure	1–8 bar	Flow pressure 1–8 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Storage temperature	-20 – +70 °C	Storage temperature -20 – +70 °C
Minimum flow pressure	1 bar	Minimum flow pressure 1 bar

Calculated flow rate	0.23 l/s	Calculated flow rate 0.23 l/s
Interval flush, adjustment range	1–168 h	Interval flush, adjustment range 1–168 h
Interval flush, factory setting	24 h	Interval flush, factory setting 24 h
Detection time, adjustment range	3–15 s	Detection time, adjustment range 3–15 s
Detection time, factory setting	7 s	Detection time, factory setting 7 s
Flush time, adjustment range	1–15 s	Flush time, adjustment range 1–15 s
Flush time, factory setting	7 s	Flush time, factory setting 7 s

Battery type	Alkaline (1.5 V AA)	Battery type Alkaline (1.5 V AA)
Degree of protection	IP45	Degree of protection IP45
Operating voltage	3 V DC	Operating voltage 3 V DC
Flow pressure	1–8 bar	Flow pressure 1–8 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Storage temperature	-20 – +70 °C	Storage temperature -20 – +70 °C
Minimum flow pressure	1 bar	Minimum flow pressure 1 bar
Calculated flow rate	0.23 l/s	Calculated flow rate 0.23 l/s
Interval flush, adjustment range	1–168 h	Interval flush, adjustment range 1–168 h
Interval flush, factory setting	24 h	Interval flush, factory setting 24 h
Detection time, adjustment range	3–15 s	Detection time, adjustment range 3–15 s
Detection time, factory setting	7 s	Detection time, factory setting 7 s
Flush time, adjustment range	1–15 s	Flush time, adjustment range 1–15 s
Flush time, factory setting	7 s	Flush time, factory setting 7 s

Application purposes

Click on an application purpose to search more products

For automatic flush actuation of urinals For installation in Geberit Duofix elements without fixed crossbars, for urinal (from year of manufacture 2013)

Characteristics

Click on a characteristic to search more products

Cover plate with securing bar Reliable IR distance detection Self-adjusting IR sensor Infrared user detection with background fade-out Flush time can be set Adjustable interval flush Dynamic flushing time adjustment Preflush can be set Can be switched to operation with covered urinal

One-time flush after activation of the power supply Battery-operated Device settings and operation with mobile device via integrated Bluetooth® interface Compatible with Geberit Control App Warning when the battery is low Valve-closing function when battery is flat Functions can be set and queried with the Geberit Service Handy Flush actuation can be deactivated Components in contact with drinking water lead-free

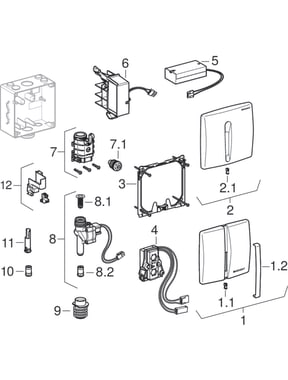

Scope of delivery

Cover plate with IR window
Mounting frame
Infrared control
Solenoid valve

2 alkaline manganese batteries type AA 1.5 V
Fastening material

Geberit Control – The app for professional work on Geberit products in public spaces

Geberit Control offers users digital access to Geberit products for simple and efficient management of sanitary facilities by facility managers and plumbers. All functions in the app are free of charge.
