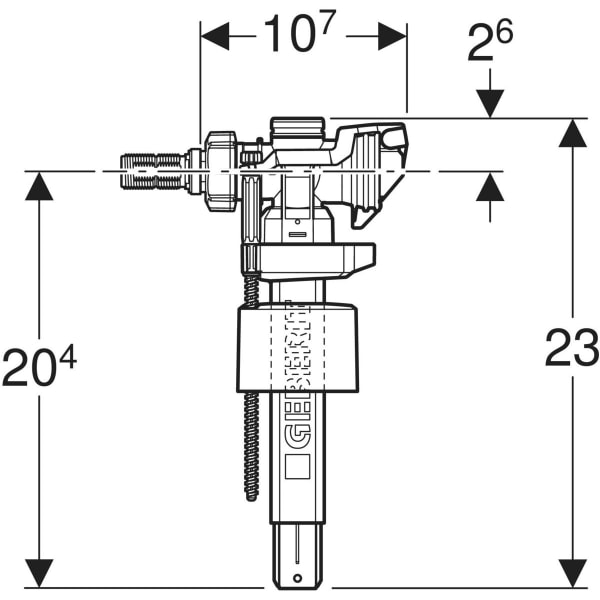

Geberit Type 383 fill valve, lateral water supply connection, 3/8" and 1/2", nipple made of brass
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Appliance sound pressure level at 300 kPa / 3 bar 7 dB(A) |
Appliance sound pressure level at 500 kPa / 5 bar 13 dB(A) |
Storage temperature ≤ 40 °C |
Water temperature max. 25 °C |
Durchfluss bei 50 kPa / 0.5 bar 0.06 l/s |
Durchfluss bei 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Spacer ring set
Nipple made of brass, R 3/8" and R 1/2"
Documents
Your input does not return any results
Spare parts
Fill valves Type 383, lateral water supply connection unit
Fill valves Type 383, lateral water supply connection unit
2024 -
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 240.710.00.1 | Connection pipe for Impuls380 filling valve | |
| 2 | 245.988.00.1 | ||
| 4 | 240.069.00.1 | Flexible tube for water connection | |
