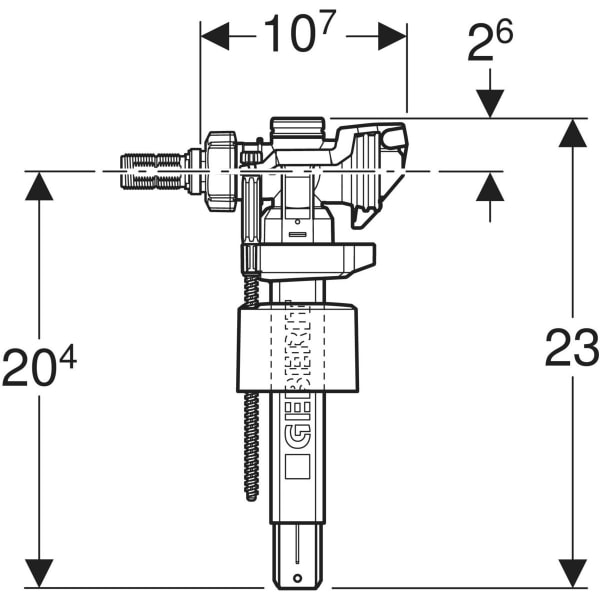

Geberit Type 383 fill valve, lateral water supply connection, 3/8", nipple made of brass
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Tap sound level at 3 bar 7 dB(A) |
Tap sound level at 5 bar 13 dB(A) |
Storage temperature ≤ 40 °C |
Operating temperature, water max. 25 °C |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Spacer ring set
Filter for nipple / reinforced braided hose types 350 and 380 filling valves
Cone screw fitting
Documents
Your input does not return any results
Spare parts
Fill valves Type 383, lateral water supply connection unit
Fill valves Type 383, lateral water supply connection unit
2025 -
| # | Art. no. | Description |
|---|---|---|
| 1 | 240.710.00.1 | Connection pipe for Impuls380 filling valve |
| 4 | 240.069.00.1 | Flexible tube for water connection |
| 7 | 240.712.00.1 | Adapter elbow 3/8" x 3/8" for concealed cistern |
