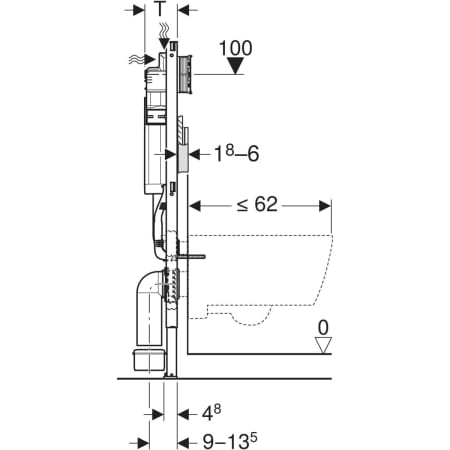

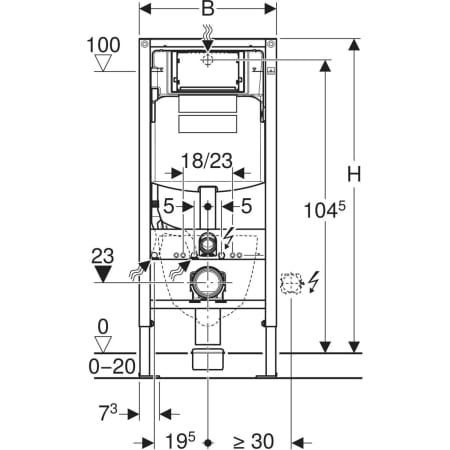

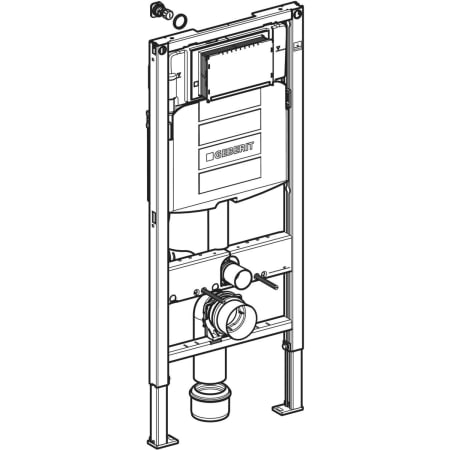

Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coatingFrame with ø 9 mm drilling holes for fastening in wood frame constructionFrame prepared for support brackets for WC ceramic appliances with small contact surfacesGalvanized feetFeet adjustable 0–20 cmNon-slip leg supportsRotatable foot platesFoot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system railsConnection bend can be mounted without tools at different depths, adjustable range 45 mmFastening for connection bend, sound-absorbing
Concealed cistern with front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to lengthWith conduit pipe for feed pipe for connection of Geberit AquaClean shower toiletsFastening option for electrical connectionPower & Connect Box mountable
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 protection plugs
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 threaded rods M12
Fastening material
Documents
Your input does not return any results
Films
Spare parts
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
2002 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.869.00.1 | Assembly parts Duofix C/C Sigma-12 | ||
| 2 | Go to the spare parts page: | |||
| 2 | Go to the spare parts page: | |||
